difuzor coaxial Beyma, 12CXA400Nd

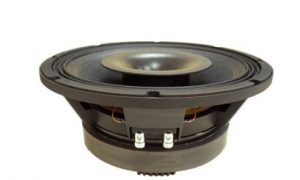

difuzor coaxial Beyma, 12CXA400Fe
<span class="woocommerce-Price-amount amount"><bdi>320,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
difuzor coaxial Beyma, 12XA30Nd
<span class="woocommerce-Price-amount amount"><bdi>434,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
475,95 € + TVA
| putere (LF/HF): | 400/90W RMS, |
| sensibilitate(LF/HF): | 98/105 dB/1W/1M, |
| domeniu de frecvenţă: | 50-20000 Hz, |
| impedanţă(LF/HF): | 8/16 ohm, |
| frecvenţă rezonanţă: | 45 Hz, |
| preţ kit reparaţii: | 72,95 Euro+TVA |
TECHNICAL SPECIFICATIONS
Nominal impedance LF/HF
8/16 ohm
HF diaphragm ref.
5MCP756
LF Recone kit ref.
5M12CXA4ND8
Nominal diameter
300 mm 12 in
Minimum impedance LF/HF
6.8 / 11.3 ohm
Frequency range
50-20000 Hz
Power capacity LF/HF
400/90 W AES
Program power LF/HF
800/180 w
Sensitivity LF/HF
98/105 dB 1W/1m @ ZN
Recom. crossover frequency
1.5 kHz or higher (12dB/oct min slope)
Voice coil diameter LF/HF
101.6/72.4 mm – 4/2.85 in
Dispersion (conical)
60º
BL factor
21.4 N/A
Moving mass
0.064 kg
Winding length
16 mm
Xdamage pp
28 mm
PARAMETERS THIELE & SMALL
Fs
45 Hz
Re
6.6 ohm
Qms
7.1
Qes
0.26
Qts
0.25
Vas
88.5 l
Cms
207 µm / N
Rms
2.5 kg/s
Efficiency %
2.75
Sd
0.055m²
Xmax
6 mm
Vd
210 cm³
Le @1 kHz
1 mH
CONSTRUCTION DETAILS
Net weight
6.5 kg 14.33 lb
Total weight
7.2 kg 15.87 lb
Magnet
Neodymium
