difuzor coaxial Beyma, 12XA30Nd

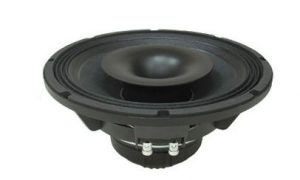

difuzor coaxial Beyma, 12CXA400Nd
<span class="woocommerce-Price-amount amount"><bdi>475,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
difuzor coaxial Beyma, 15CXA400Fe
<span class="woocommerce-Price-amount amount"><bdi>340,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
434,95 € + TVA
| putere (LF/HF): | 350/90W RMS, |
| sensibilitate(LF/HF): | 98/105 dB/1W/1M, |
| domeniu de frecvenţă: | 35-20000 Hz, |
| impedanţă(LF/HF): | 8/16 ohm, |
| frecvenţă rezonanţă: | 35 Hz, |
| preţ kit reparaţii: | 62,95 Euro+TVA |
TECHNICAL SPECIFICATIONS
Nominal impedance LF/HF
8/16 ohm
HF diaphragm ref.
5MCP756
LF Recone kit ref.
5M12XA308
Nominal diameter
300 mm 12 in
Minimum impedance LF/HF
7.6/13.5 ohm
Frequency range
35-20000 Hz
Power capacity LF/HF
350/90 W AES
Program power LF/HF
700/180 w
Sensitivity LF/HF
98/105 2.83 @ 1 m @ 2π
Recom. crossover frequency
1.2 kHz or higher (12dB/oct min slope)
Voice coil diameter LF/HF
100/72 mm – 4 /2.9 in
Dispersion (conical)
80º
BL factor
15.3 N/A
Moving mass
0.047 kg
Winding length
16 mm
Xdamage pp
28 mm
PARAMETERS THIELE & SMALL
Fs
35 Hz
Re
6.8 ohm
Qms
7.98
Qes
0.22
Qts
0.21
Vas
172 l
Cms
430 µm / N
Rms
1.36 kg/s
Efficiency %
3.3
Sd
0.053 m²
Xmax
4 mm
Vd
210 cm³
Le @1 kHz
1.3 mH
CONSTRUCTION DETAILS
Net weight
6.3 kg 13.86 lb
Total weight
7 kg 15.4 lb
Magnet
Neodymium
