difuzor coaxial Beyma, 15XA38Nd

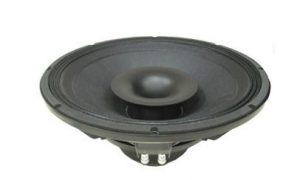

difuzor coaxial Beyma, 15CXA400Nd
<span class="woocommerce-Price-amount amount"><bdi>490,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
difuzor de banda larga Beyma 3FR30
<span class="woocommerce-Price-amount amount"><bdi>18,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
441,95 € + TVA
| putere (LF/HF): | 350/90W RMS, |
| sensibilitate(LF/HF): | 99/105 dB/1W/1M, |
| domeniu de frecvenţă: | 40-20000 Hz, |
| impedanţă(LF/HF): | 8/16 ohm, |
| frecvenţă rezonanţă: | 38 Hz, |
| preţ kit reparaţii: | 114,95 Euro+TVA |
TECHNICAL SPECIFICATIONS
Nominal impedance LF/HF
8/16 ohm
HF diaphragm ref.
5MCP756
LF Recone kit ref.
5M15XA388
Nominal diameter
380 mm 15 in
Minimum impedance LF/HF
8.4 / 12.6 ohm
Frequency range
40-20000 Hz
Power capacity LF/HF
350/90 W AES
Program power LF/HF
700/180 w
Sensitivity LF/HF
99/105 2.83 @ 1 m @ 2π
Recom. crossover frequency
1.5 kHz or higher (12dB/oct min slope)
Voice coil diameter LF/HF
101.6/72.4 mm – 4/2.85 in
Dispersion (conical)
80º
BL factor
20.4 N/A
Moving mass
0.082 kg
Winding length
16 mm
Xdamage pp
28 mm
PARAMETERS THIELE & SMALL
Fs
38 Hz
Re
6.7 ohm
Qms
6.4
Qes
0.31
Qts
0.3
Vas
238 l
Cms
217 µm / N
Rms
3 kg / s
Efficiency %
3.9
Sd
0.088 m²
Xmax
6 mm
Vd
528 cm³
Le @1 kHz
1 mH
CONSTRUCTION DETAILS
Net weight
6.8 kg 14.96 lb
Total weight
7.4 kg 16.28 lb
Magnet
Neodymium
