difuzor coaxial Beyma, 5CX200Nd/N

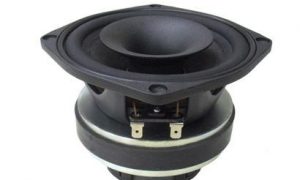

difuzor coaxial Beyma 5CX200Fe
<span class="woocommerce-Price-amount amount"><bdi>146,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
difuzor coaxial Beyma, 6CX200Fe
<span class="woocommerce-Price-amount amount"><bdi>161,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
255,95 € + TVA
| putere (LF/HF): | 150/40W RMS, |
| sensibilitate(LF/HF): | 92.5/102 dB/1W/1M, |
| domeniu de frecvenţă: | 75-20000 Hz, |
| impedanţă(LF/HF): | 8/16 ohm, |
| frecvenţă rezonanţă: | 75 Hz, |
| preţ kit reparaţii(LF/HF): | 51,95 Euro+TVA |
TECHNICAL SPECIFICATIONS
Nominal impedance LF/HF
8/8 ohm
HF diaphragm ref.
5MSMC2258
LF Recone kit ref.
5M5CX2ND8
Nominal diameter
125 mm 5 in
Minimum impedance LF/HF
5.7/5 ohm
Frequency range
75-20000 Hz
Power capacity LF/HF
150/40 W AES
Program power LF/HF
300 / 80 w
Sensitivity LF/HF
92.5/102 dB 1W/1m @ ZN
Recom. crossover frequency
2.5 kHz or higher (12 dB/oct. min slope)
Voice coil diameter LF/HF
39/44 mm – 1.5/1.75 in
Dispersion (conical)
70º
BL factor
7.32 N/A
Moving mass
0.006 kg
Winding length
14 mm
Xdamage pp
19 mm
PARAMETERS THIELE & SMALL
Fs
75 Hz
Re
5.2 ohm
Qms
10
Qes
0.28
Qts
0.28
Vas
9.1 l
Cms
711 µm / N
Rms
0.3 kg/s
Efficiency %
1.3
Sd
0.0095 m²
Xmax
5.7 mm
Vd
48 cm³
Le @1 kHz
0.2 mH
CONSTRUCTION DETAILS
Net weight
1.6 kg 3.5 lb
Total weight
1.7 kg 3.74 lb
Magnet
Neodymium
