difuzor coaxial Beyma, 6CX200Nd/N

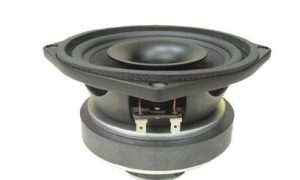

difuzor coaxial Beyma, 6CX200Fe
<span class="woocommerce-Price-amount amount"><bdi>144,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
difuzor coaxial Beyma, 8CX300Fe
<span class="woocommerce-Price-amount amount"><bdi>192,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
257,95 € + TVA
| putere (LF/HF): | 200/40W RMS, |
| sensibilitate(LF/HF): | 92/103 dB/1W/1M, |
| domeniu de frecvenţă: | 65-20000 Hz, |
| impedanţă(LF/HF): | 8/16 ohm, |
| frecvenţă rezonanţă: | 65 Hz, |
| preţ kit reparaţii: | 60,95 Euro+TVA |
TECHNICAL SPECIFICATIONS
Nominal impedance LF/HF
8/8 ohm
HF diaphragm ref.
5MSMC2258
LF Recone kit ref.
5M6CX2ND8
Nominal diameter
165 mm 6.5 in
Minimum impedance LF/HF
5.4/5 ohm
Frequency range
65-20000 Hz
Power capacity LF/HF
200/40 W AES
Program power LF/HF
400 / 80 w
Sensitivity LF/HF
92/103 2.83 @ 1 m @ 2π
Recom. crossover frequency
2.5 kHz or higher (12 dB/oct. min slope)
Voice coil diameter LF/HF
50.8/44.4 mm – 2/1.75 in
Dispersion (conical)
70º
BL factor
10.52 N/A
Moving mass
0.016 kg
Winding length
14 mm
Xdamage pp
26 mm
PARAMETERS THIELE & SMALL
Fs
65 Hz
Re
5 ohm
Qms
3.95
Qes
0.29
Qts
0.27
Vas
9.4 l
Cms
366 µm / N
Rms
1.7 kg/s
Efficiency %
0.9
Sd
0.0135 m²
Xmax
5.5 mm
Vd
69 cm³
Le @1 kHz
0.24 mH
CONSTRUCTION DETAILS
Net weight
2 kg 4.4 lb
Total weight
2.2 kg 4.85 lb
Magnet
Neodymium
