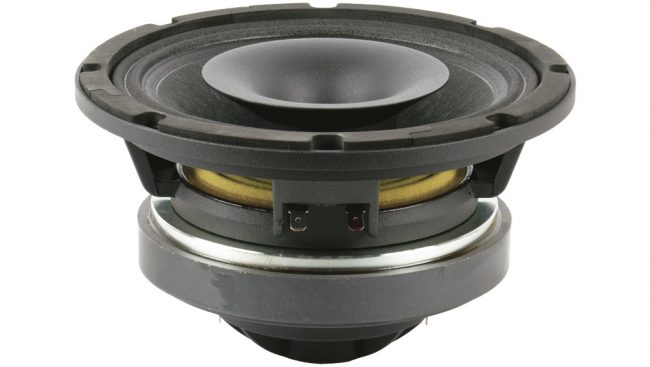

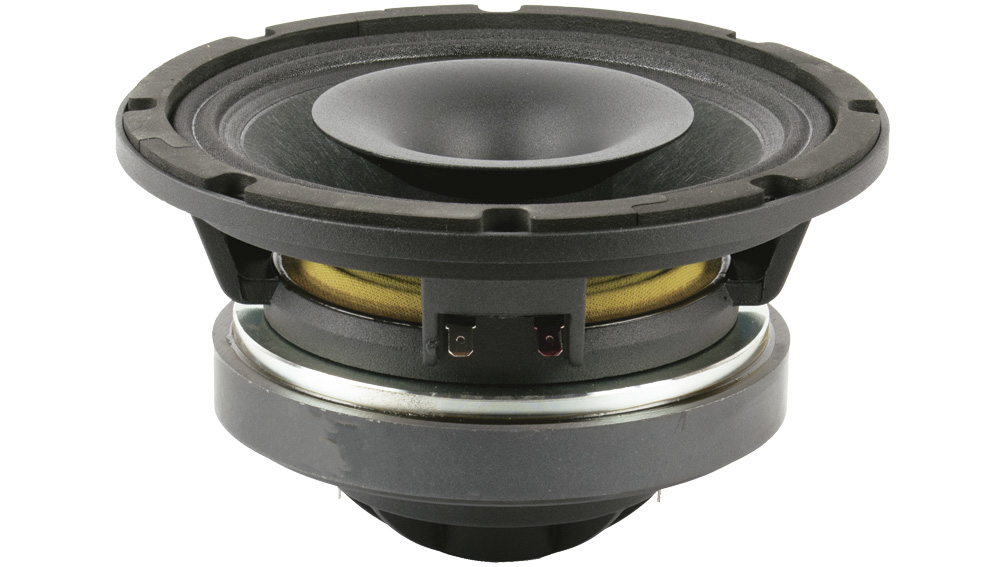

difuzor coaxial Beyma, 8CX300Fe

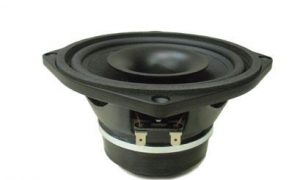

difuzor coaxial Beyma, 6CX200Nd/N
<span class="woocommerce-Price-amount amount"><bdi>287,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
214,95 € + TVA
putere (LF/HF): | 300/50W RMS, |
sensibilitate(LF/HF): | 95/105 dB/1W/1M, |
domeniu de frecvenţă: | 90-20000 Hz, |
impedanţă(LF/HF): | 8/16 ohm, |
frecvenţă rezonanţă: | 89 Hz, |
preţ kit reparaţii: | 51,95 Euro+TVA |
ECHNICAL SPECIFICATIONS
Nominal impedance LF/HF
8/16 ohm
HF diaphragm ref.
5MCD106
LF Recone kit ref.
5M8CX3FE8
Nominal diameter
200 mm 8 in
Minimum impedance LF/HF
6.6 / 10.1 ohm
Frequency range
90-20000 Hz
Power capacity LF/HF
300/50 W AES
Program power LF/HF
600/100 W
Sensitivity LF/HF
95/105 dB 1W/1m @ ZN
Recom. crossover frequency
2 kHz or higher (12dB/oct min slope)
Voice coil diameter LF/HF
62/44 mm – 2.5/1.75 in
BL factor
9.6 N /A
Moving mass
0.020 kg
Winding length
15 mm
PARAMETERS THIELE & SMALL
Fs
89 Hz
Re
5.2 ohm
Qms
4.2
Qes
0.63
Qts
0.55
Vas
10.8 l
Cms
158 µm / N
Rms
2.7 kg/s
Efficiency %
1.2
Sd
0.022 m²
Xmax
6 mm
Vd
132 cm³
Le @1 kHz
0.2 mH
CONSTRUCTION DETAILS
Net weight
4.6 kg 10.14 lb
Total weight
4.9 kg 10.8 lb
Magnet
Ferrite
