horn de directivitate Beyma, TD-460/N

Acasa/Difuzoare/hornuri/horn de directivitate Beyma, TD-460/N
horn td460n

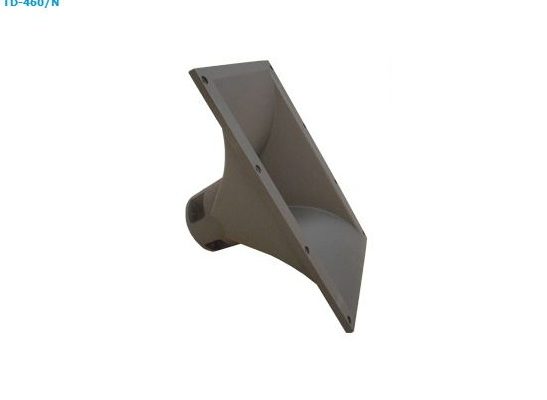

horn de directivitate Beyma, TD-460/N

In Stock

160,95  + TVA

TECHNICAL SPECIFICATIONS

Dispersion HxV   60×40º
Throat diameter   49 mm 2 in

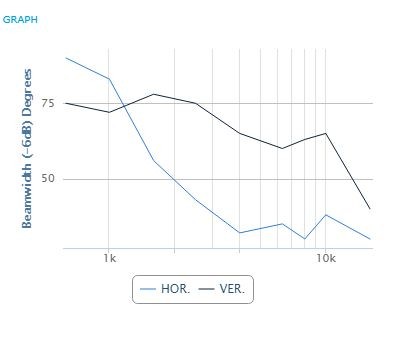

Horizontal beamwidth   60º (+18º -20º) (-6dB 0.63 – 16kHz)
Vertical beamwidth   40º (+16º -12º) (-6dB 1.6 – 16kHz)
Directivity factor (Q)   18.5 (media/average 0.63 – 16kHz)
Directivity index (DI)   12.7dB (+3.1dB -4.1dB)


CONSTRUCTIVE DETAILS

Dimensions (WxHxD)   420x270x227mm
Baffle cutout dimensions (WxH)   365x235mm
Net weight   2 kg 4.4 lb
Total weight   2.8 kg 6.17 lb
Material   Rigid polyurethane foam
Construction   Rygid polyurethane foam. Aluminium adaptor.
Connection of driver by 4 screws on a 4 in. (101.6mm)
diameter bolt circle. Mounting hardware is supplied.
