horn de directivitate Beyma, TD194

Acasa/Difuzoare/hornuri/horn de directivitate Beyma, TD194
horn td194

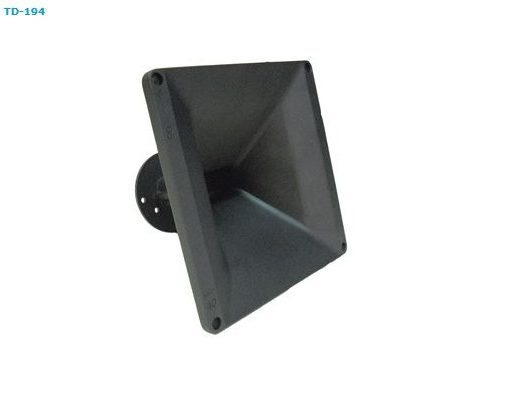

horn de directivitate Beyma, TD194

In Stock

47,95  + TVA

TECHNICAL SPECIFICATIONS

Dispersion HxV   90×40º
Throat diameter   25 mm 1 in

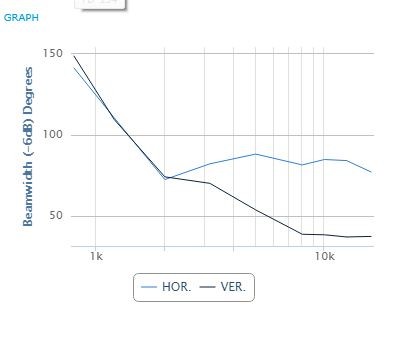

Horizontal beamwidth   90º (+2º -18º) (-6dB 2 – 16kHz)
Vertical beamwidth   40º (+34º -3º) (-6dB 2 – 16kHz)
Directivity factor (Q)   11.2 (media/average 800 – 16kHz)
Directivity index (DI)   10.2dB (+2dB -6.4dB)


CONSTRUCTIVE DETAILS

Dimensions (WxHxD)   202x202x145mm
Baffle cutout dimensions (WxH)   177x177mm
Net weight   1 kg 2.2 lb
Total weight   1.3 kg 2.86 lb
Material   Aluminium
